Zylinder-Laufbuchse für Landini 6500 7500 9500 Massey Ferguson 165 375 840 3080

Sparex
Artikelnr. S.40434
Lieferzeit: 3 - 5 Tage

42.38€ *

* inkl. 19% MwSt. zzgl. Versandkosten

Menge

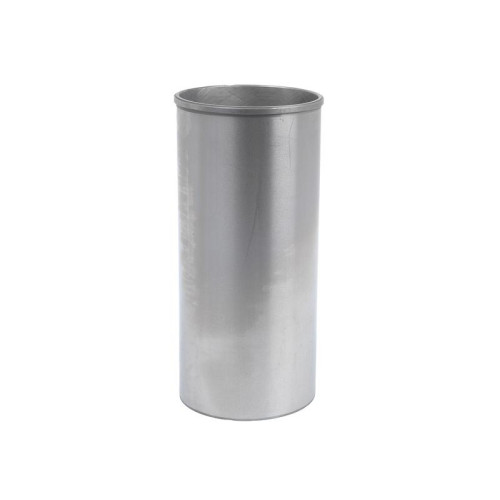

Kolben Zylinder-Laufbuchse (Finished) S.40434

Bohr. 98,46mm Länge 227,57mm

Original-Artikelnummern

JCB

02100206

Landini

744948M1, 131358394, 131358441, 31358341, 31358394, 31358441

Massey Ferguson

736 507M3, 31358394, 744948M1, 744948V1, 762026M1, 736507M3, 744948Z1, 744 948M1, 31358341, 31358441, 734644M1, 3638885M91, 832268M1, 3637 766M91, 3637766M91, 3638 885M91, 4224056M1, 4224056V1

Perkins

31358341, 31358394, 31358441

Volvo

PH31358394

Passend für Marke / Modell

Allis Chalmers

170, 175

Landini

6500, 6530, 6550, 6560, 6830, 6840, 6860, 6870, 6880, 7000, 7500, 7530, 7550, 7560, 7830, 7860, 7870, 7880, 9500, 9880, Advantage 65, Advantage 75, Blizzard 65, C10500, C6500, C6830, C6860, C7830, CF6830, Large 10000, Large 12500, Large 13000, Large 14500, Large 16000, Large 16500, Large 9550, Rex 65, Rex 75, Trekker 65, Trekker 70, Trekker 75

Massey Ferguson

10, 1004T, 1007, 1014, 1024, 1100, 1104, 1105, 1114, 1130, 1134, 1135, 1200, 1250, 165, 165 US Built, 168, 174, 174C, 175, 175 US Built, 178, 184, 186, 187, 20, 24, 240, 255, 261, 2620, 2625, 2640, 2645, 265, 2675, 2680, 2685, 27, 2705, 2720, 2725, 273, 274, 274SK, 275, 283, 284, 29, 29XP, 3050, 3065, 307, 3070, 3080, 3090, 30D, 31, 31XP, 330, 3303, 3305, 3505, 3610, 362, 3630, 365, 3650, 372, 373, 374, 375, 375E Brazilian, 377, 383, 384, 387, 390T, 393, 398, 399, 50, 500, 507, 50B, 50C, 50D, 50E, 50EX, 50H, 50HX, 510, 520, 525, 530, 530S, 560, 565, 575, 6000, 60H, 660 Brazilian, 675, 698T, 699, 750, 760, 810, 820, 825, 830, 835, 840, 865, 99

Massey Harris

820

Perkins

A4.212 (LA), A4.236 (LD), A6.354 (TC), A6.354.4 (TW), AT6.354 (TE), AT6.354.4 (TU), T4.236 (LJ)

Volvo

2200, 2204, 2250, 2254, T500

White Oliver

1850, 2-105, 2-110, 2-85

Produktspezifikationen
Alternative Produkte	40440
Außen Ø mm	103.22
Bohrung Ø mm	98.46
Feuerring	Ja
Flansch Ø mm	106.4
Flanschbreite mm	3.81
Höhe mm	227.57
Marke	Sparex
Nass oder trocken	Dry
Oberfläche	Finished
Perkins Bauliste	Perkins Build List: LA21194, 21243, 21245, 21246, 21248, 21419, 22102, 22207 (=>UA187116L), LA21194, 21243, 21245, 21246, 21248, 21593, 21912, 22102, 22731 (=UA187116L>), LD20007, 21908, 22055 (=>U24720L) (Engines fitted with Flame Ring Liners), LD21691, 21731, 21908, 22181, 22184, 22186, 22238, 22524, 22596, 22644, 22671, 22676, 22679, 22682, 22684, 22692, 22694, 22695, 22745, 22749, 22750, 22751, 22756, 22763, 22778, 22781, 22784, 22802, 22813, 22822, 22824, 22825, 31085, 31096, 31104, 31110, 31122, 31132, 31134, 33514, 50096, 50103, 50104, 50105, 50143, 50145, 50176, 50179, 50204, 70047, 80094, 80147 (*=U524721L>) (Engines fitted with Standard Pistons & Flame Ring Liners), TC, TE, TG, TH, TJ, TK, TP, TR, TT, TU, TW, TC (Excluding TC20820), TG21428, 22572, 22577, 22585, 22819, TW31015, 31017, 31051, 31054, 31087, 33169, 33196, 33383, 50003, 50055, 50059, 70005, 70007, 70038, 70087, 70158, 80006, 80045, 80062, 80065, 80189, 80242 (Flange Type Liner), TE00273, 20596, 20773, 21925, 22097, TH, TT, TC20820, TG21303, 22453, TJ, TK
Tariff Code	8409990000
Verwandte Produkte	40414, 40428, 40448, 40449, 40450, 40455, 40457, 40597, 40599, 40601, 40610, 40616, 41373, 41954, 41955, 42197, 42198, 42199, 42207, 42208
